"ICON | 05-15 Toyota Tacoma 0-3.5in,16-17 Toyota Tacoma 0-2.75in | Stg 10 Suspension System w,Billet Uca"
K53010
SOME PRODUCTS WILL REQUIRE
10-16 WEEKS FOR THE PRODUCTS
PLEASE CALL IF YOU HAVE ANY QUESTIONS.
Price: $6913.53
Price:
$6913.53
FREE SHIPPING to LOWER 48 !
Total Price: $6913.53
FEATURES & BENEFITS
- Increased wheel travel and ride quality over stock
- Vehicle-specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers with CDCV provide up to 3.5" of front lift height (up to 2.75" on 2016-Up models)
- Extended Travel coilovers matched with ICON UCA provides increased front droop travel
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- 2.5 Aluminum Series RXT rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Multi-Rate Leaf Spring with 3 user-adjustable spring rates for unique vehicle configurations
- ICON RXT Omega Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
- Omega Series two-tube bypass allows for 28 settings of compression and rebound damping adjustment
- FK Rod End bearings for extended longevity and minimal deflection
- Shocks are fully rebuildable and revalveable
- Bolt-on system means no cutting or welding necessary for install
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
TECH INFO:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #109: 2016-UP TACOMA LIFT RANGE IS 0-2.75”
- APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
- APPLICATION NOTE #111: BUMP STOP SPACER KIT 51045 CAN BE INSTALLED TO INCREASE PRELOAD .25” BEYOND MAXIMUM
- TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" and 1.375-2.125" of rear lift over stock, depending on rear spring configuration and rear weight
- Ships in Multiple Boxes

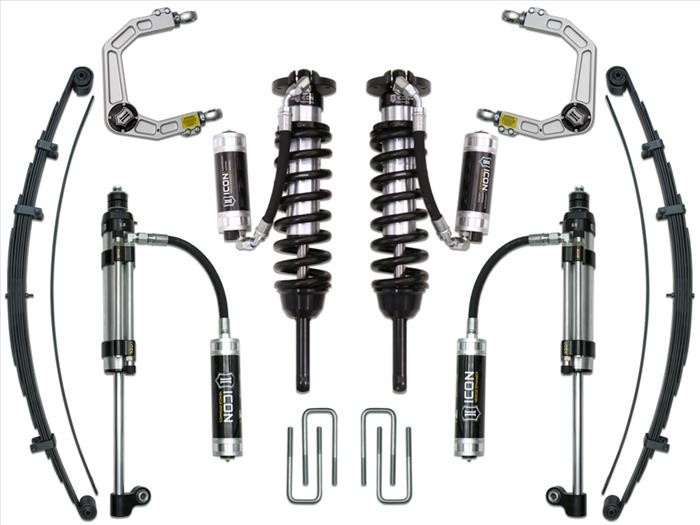

SYSTEM COMPONENTS:
- 59926P (QTY: 1) | 05-UP TACOMA RXT REAR 2.5 OMEGA RR PAIR
- 58550DJ (QTY: 1) | 05-UP TACOMA BILLET UCA DJ KIT
- 158505 (QTY: 2) | 05-UP TACOMA MULTI RATE RXT LEAF PACK W/ ADD IN LEAF
- 58735C (QTY: 1) | 05-UP TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT
- 52050 (QTY: 1) | TOYOTA REAR 8.0" U-BOLT KIT
| Brand | ICON Suspension |
|---|---|
| SKU | K53010 |
| Year of Vehicle | 2005,2006,2007,2008,2009,2010,2011,2012,2013,2014,2015 |
| Lift Height | 0 to 3.5 |
| Drive Train | 2WD & 4WD |
| Quick Notes | N/A |
