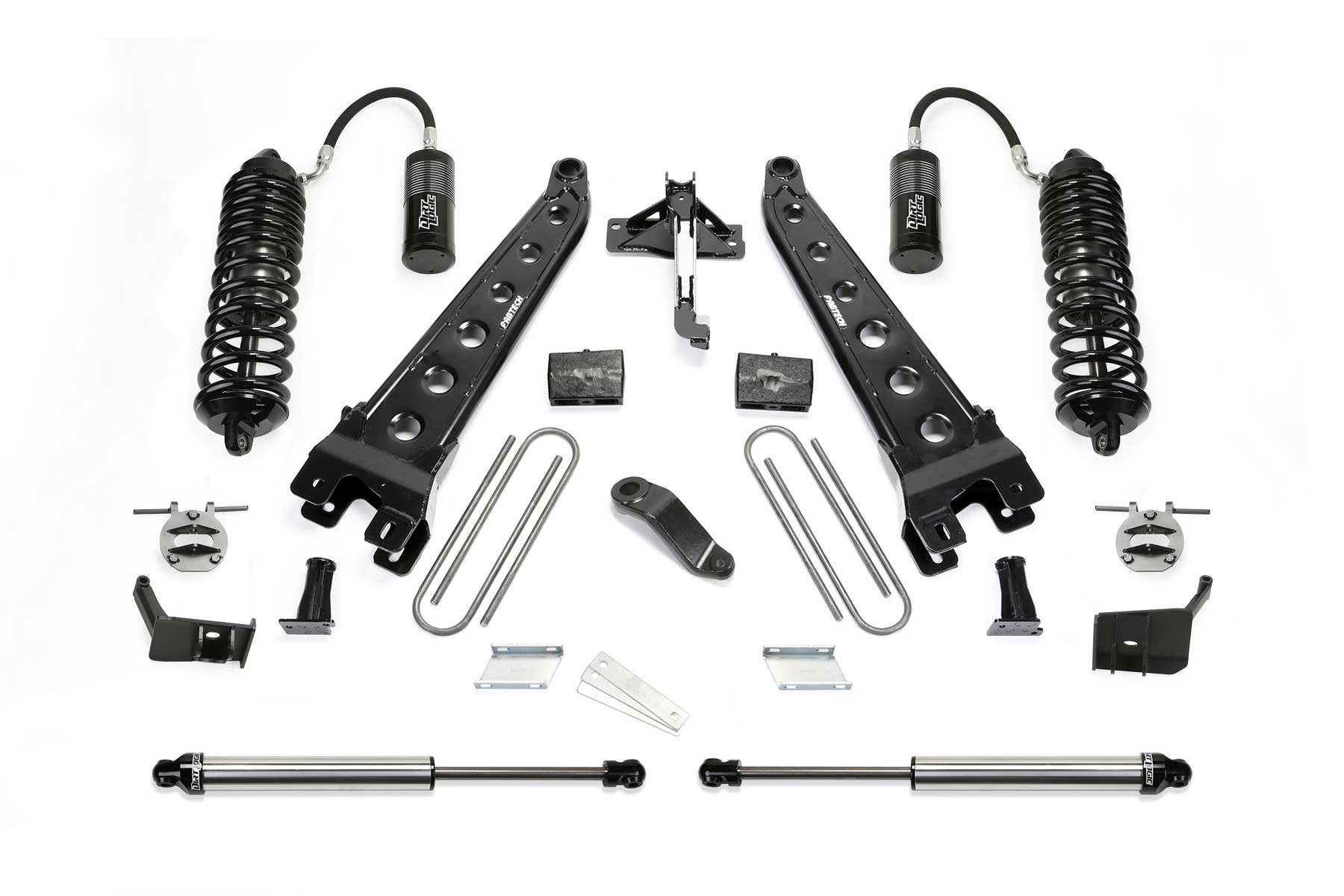

Fabtech | 19-20 Ford F450/550 4WD 6in Radius | Arm System w/DL 4 Resi Coilovers & DL 2.25 Shocks
Starting at $209/mo with Affirm. Check your purchasing power
Starting at $152/mo with
.
Prequalify now
Price: $6004.94
Total Price: $6004.94
2019-20 FORD F450/F550 4WD
Fabtech’s 6" Radius Arm lift kit for the Ford F450 and F550 Super Duty is built to handle the on and offroad demands of the truck enthusiast. This vehicle’s suspension is more robust than the Ford F250 and F350 and therefore demands specialty parts only available from Fabtech.
This Radius Arm system is a complete upgrade to the factory suspension and will provide additional strength for use with oversized tires. The design has been proven in over 10 years of service in consumer, commercial and military applications. High quality components with properly designed suspension geometry is what sets this system apart from all other Radius Arm suspensions.
Each Fabtech component has been designed with specific features and benefits that create this quality suspension system. For a greater understand of each these components please see below.
FEATURES
- Fabtech Replacement Radius Arms
- Dirt Logic 4.0 Resi Coilovers
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Block & U-bolt Kit
RADIUS ARM
Tubular construction with dimple die side plate for superior strength. Arms are offset to allow for full turning radius of the Dana Super 60 front axle with wide tires. Fabtech Radius Arms have 1 degree of caster built in for the increased ride height. Adjustable alignment cams on the Arms allow for an additional 1.5-2 degrees of caster adjustment.
DIRT LOGIC 4.0 CONVERSION
Simplistic super stout 1/4″ thick steel brackets utilize the factory coil bucket to bolt in the big Dirt Logic 4.0 Coilover. A massive 4″ diameter stainless steel body with 1.25 NitroSteel® piston rod for maximum corrosion resistance and durability for the most aggressive driving conditions. coil springs handle the weight of the F450 or F550 and provide a superior ride. The remote aluminum reservoir dissipates heat for continuous damping when driving over extreme terrain at high speed. The pinnacle of all coilover shocks.
TRACK BAR BRACKET
1/4″ thick steel bracketry re-positions the factory track bar to center the axle under the vehicle with the increased lift height. Super stout box style bracket is designed to eliminate deflection when the track bar moves through its full cycle.
DROPPED PITMAN ARM
Forged steel construction with high strength material that exceeds the factory specifications. Designed specifically for the F450 and F550 to work in conjunction with the factory drag link and Fabtech’s Track Bar bracket for proper steering functionality.
FRONT & REAR BUMP STOP BRACKETS
Heavy duty 1/4″ thick steel brackets control the travel eliminating over cycling of the suspension. Super strong construction can handle the full compression impact of the F450 or F550.
SWAY BAR BRACKETS
1/4″ thick steel drop brackets re-position the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.
BRAKE LINE BRACKETS
Re-positions the factory brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact.
STEERING STABILIZER BRACKETS
Retains the factory F450 or F550 long travel steering stabilizer with a 1/4″ thick steel bracket and support brace to help reduce tire shimmy.
REAR LIFT BLOCKS
Steel rear lift blocks replaces the factory blocks for additional lift without changing the ride quality or load carrying capacity.
REAR U-BOLTS
U-Bolts designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.
DIRT LOGIC 2.25 SHOCKS
Constructed of a stainless steel body with NitroSteel® piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use.
| Brand | Fabtech Motorsports |
|---|---|
| SKU | K2336DL-MD |
| Year of Vehicle | 2019,2020 |
| Lift Height | 6 |
| Drive Train | 4WD |
| Quick Notes | N/A |
| California Residents: Prop 65 WARNING ! | ATTN STATE OF CALIFORNIA CONSUMERS WARNING: Cancer and Reproductive Harm- https://www.p65warnings.ca.gov/ |
